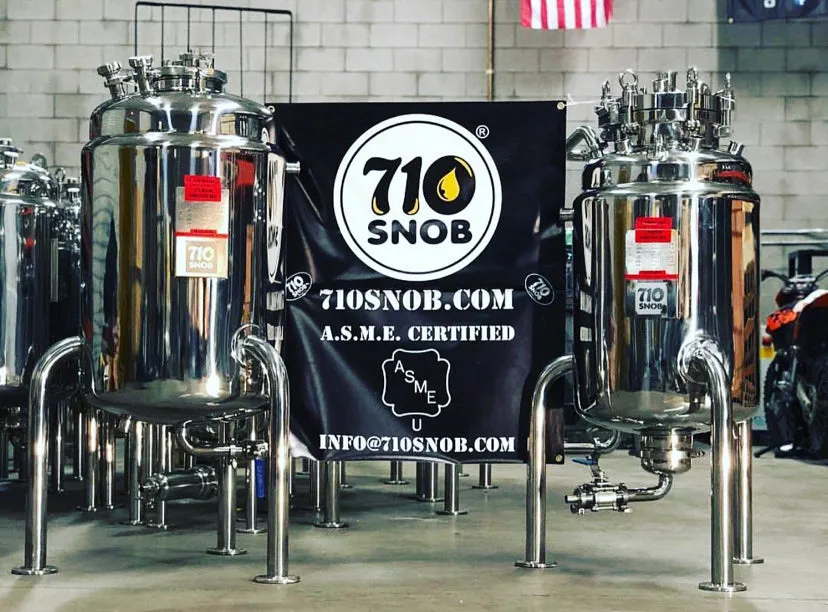

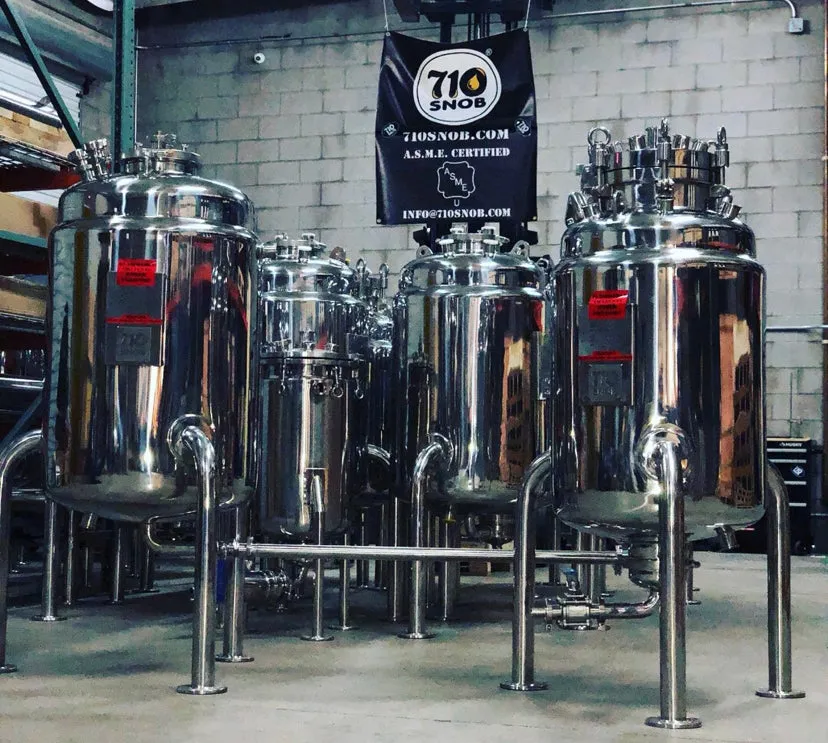

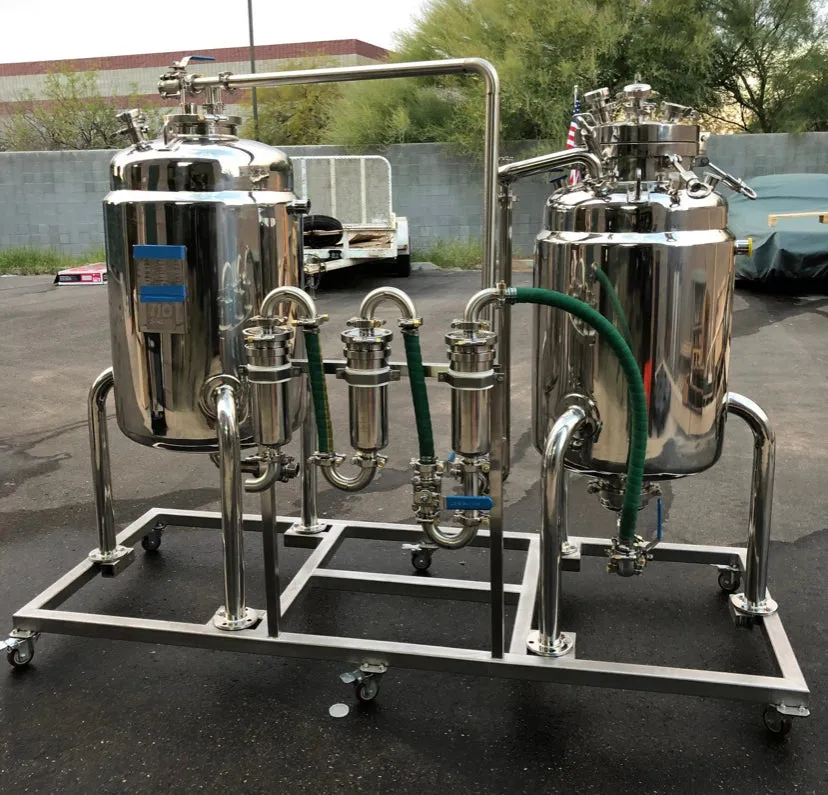

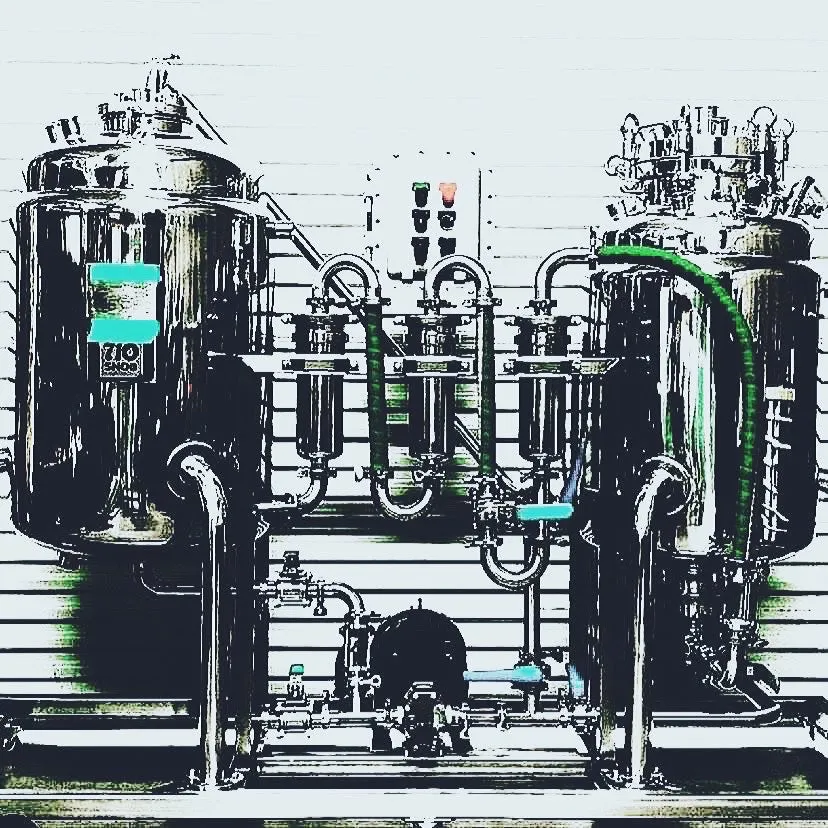

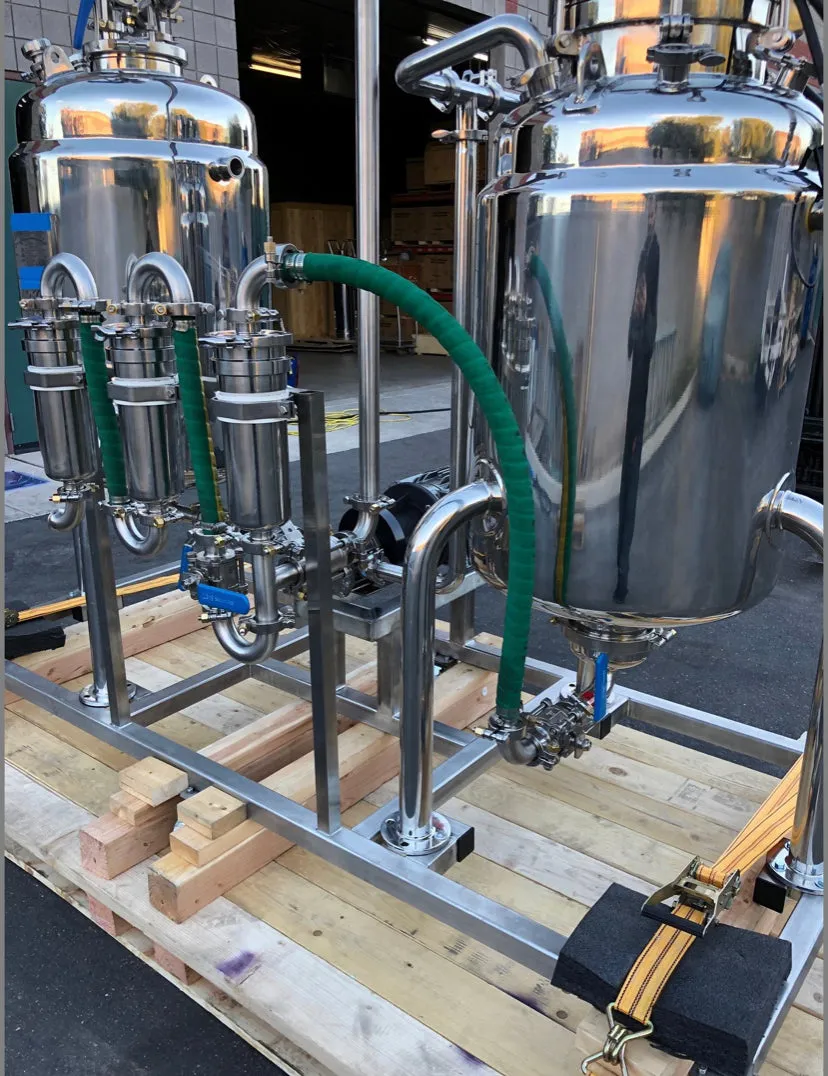

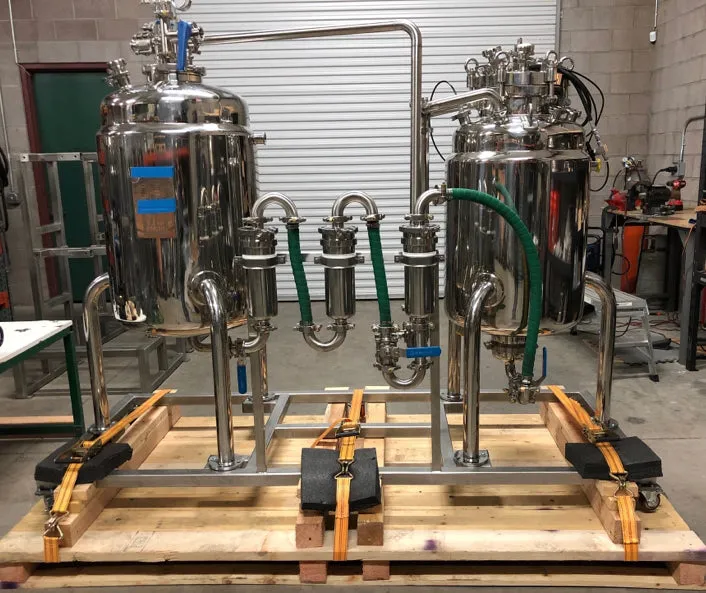

ASME certified 304 stainless steel 150L reactor skids.

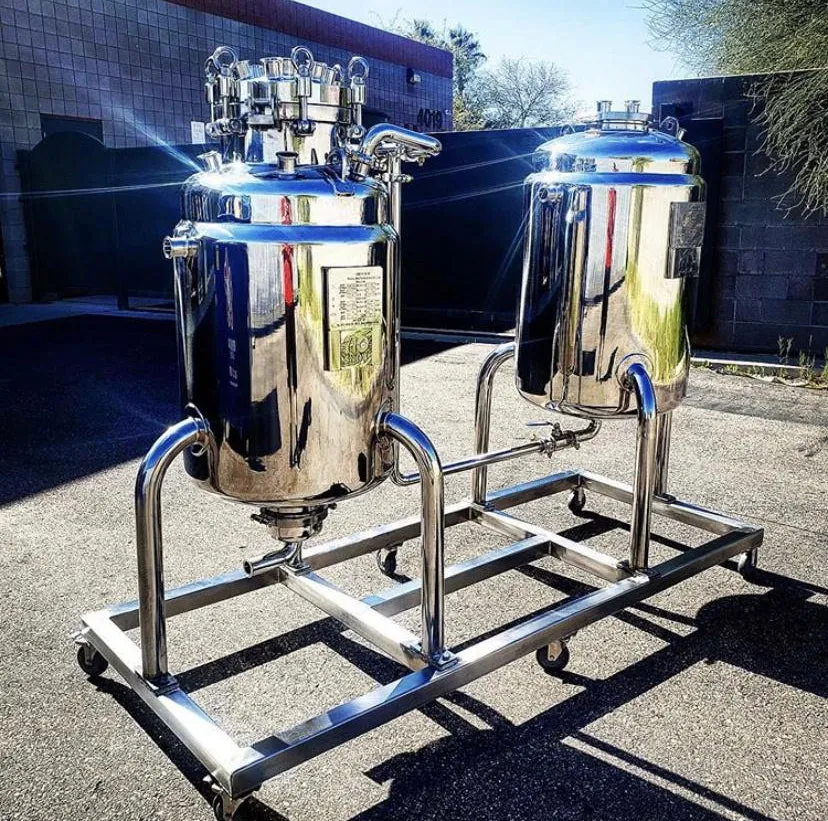

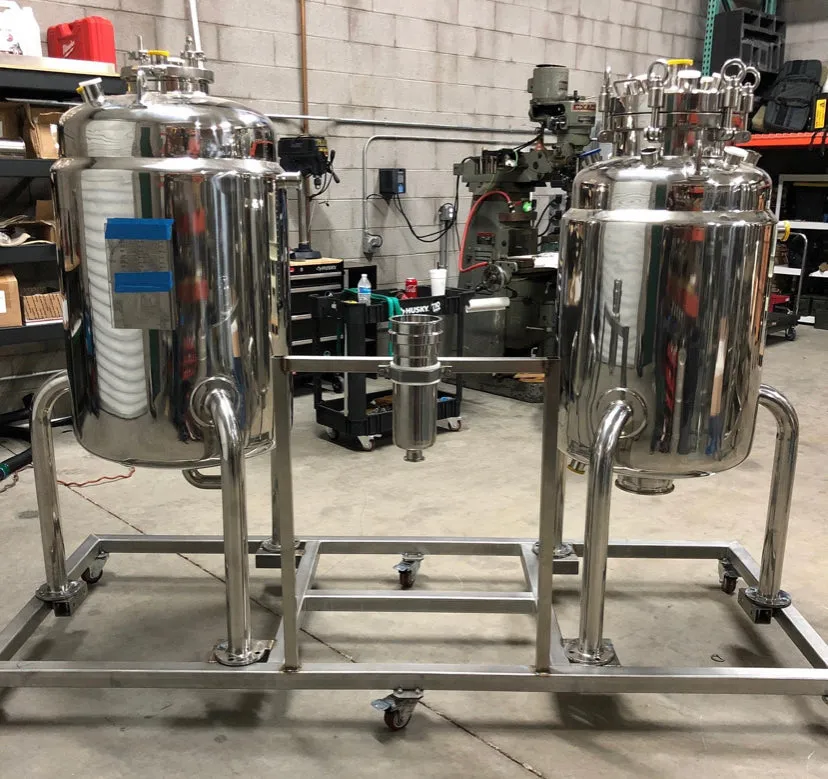

1 Reactor Skid

Approx 36” x 72” and 60” tall

6 rolling wheels

1 jacketed vessel:

1.5” jacket ports inlet and outlet

1x 1.5” drain

2x 1.5” fill on top

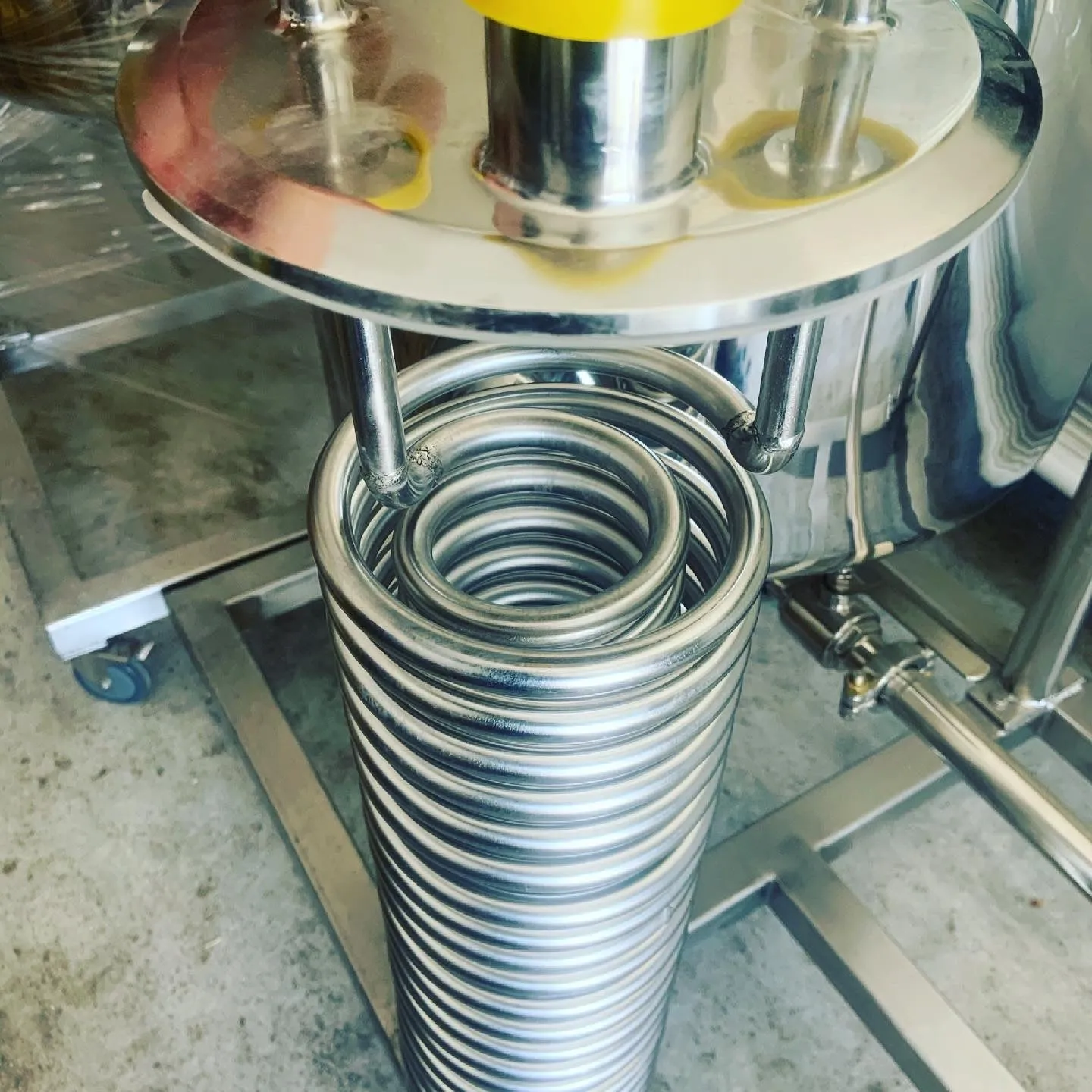

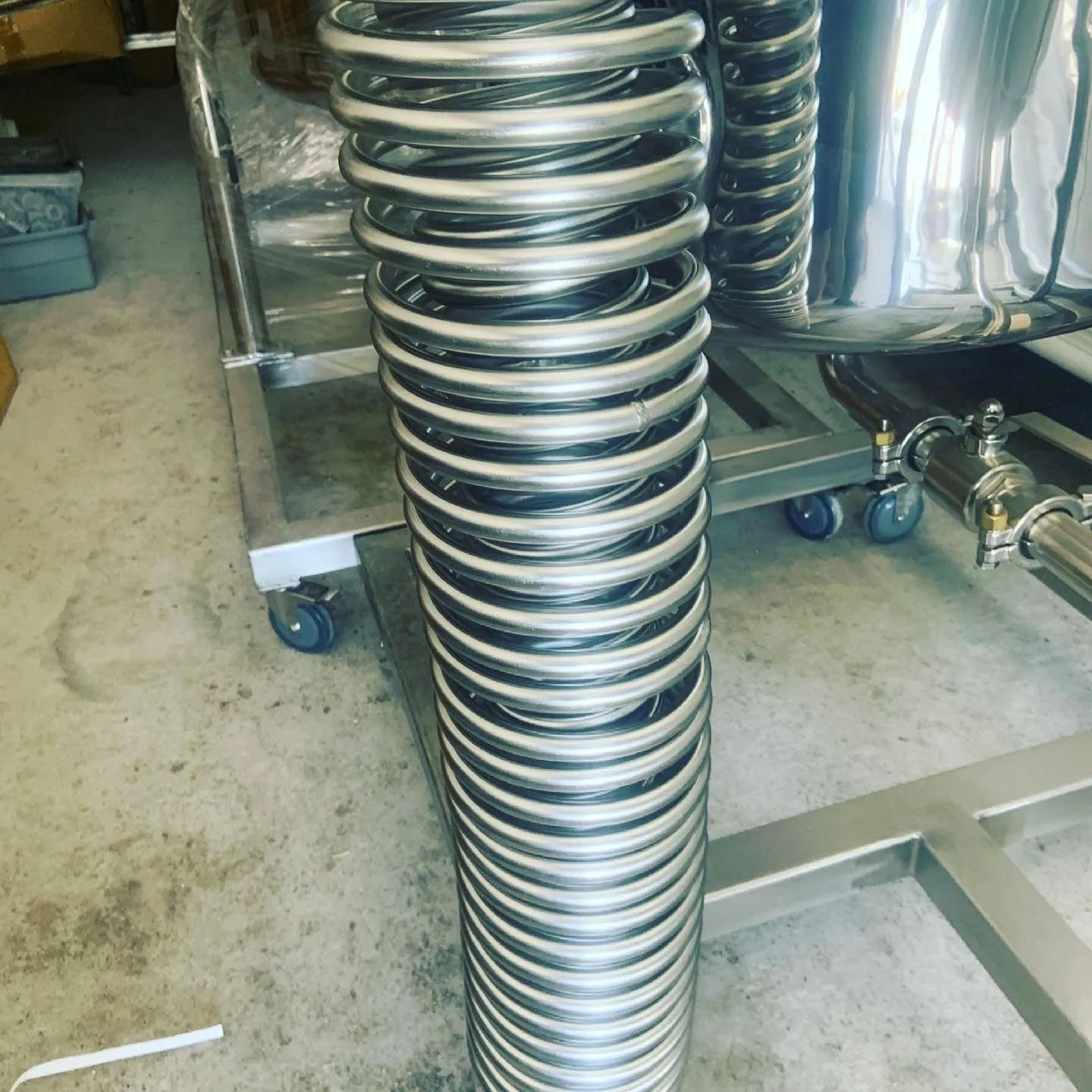

1x 8” tri clamp top, has internal coil with 1.5” inlet and outlet

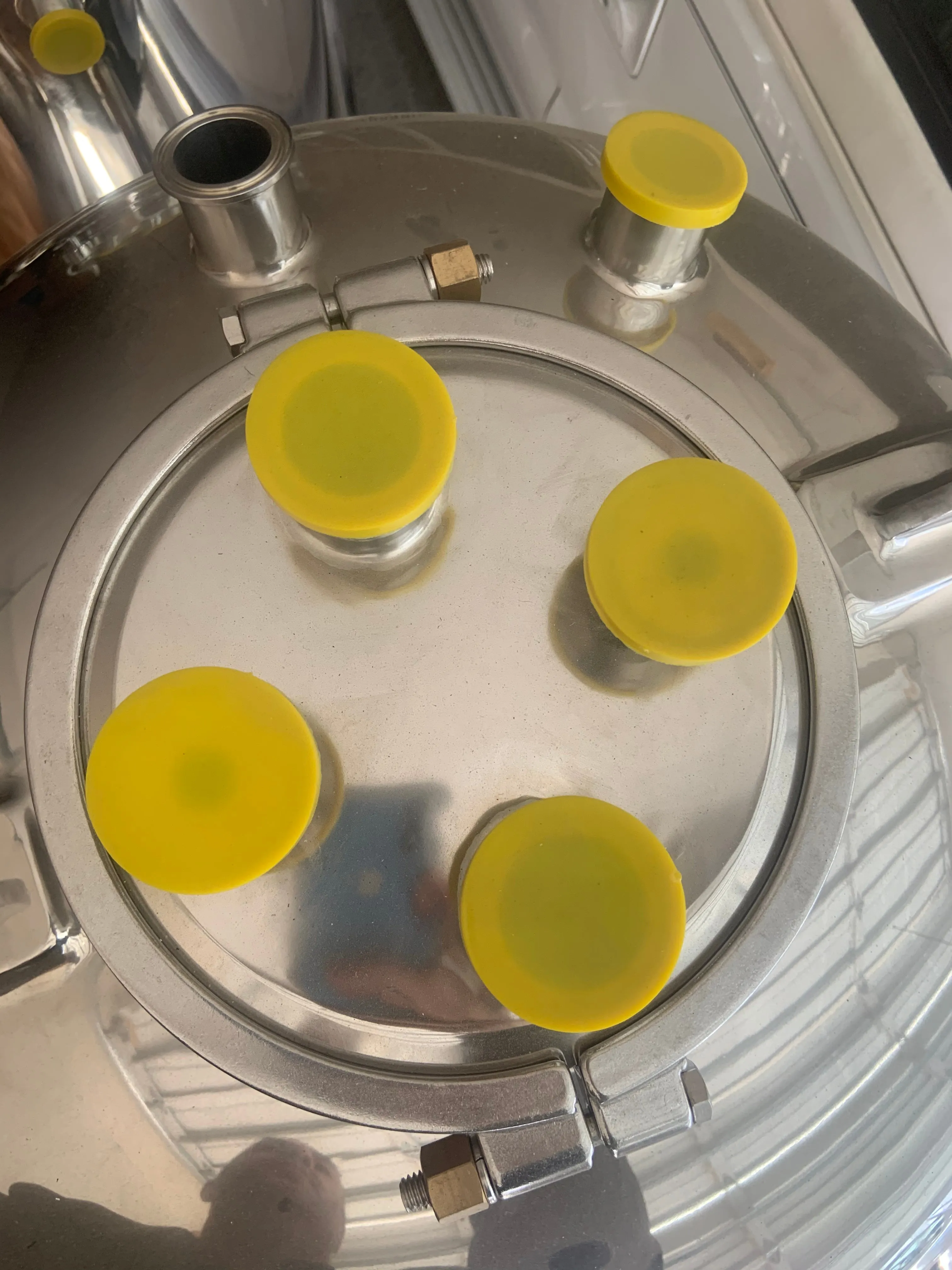

2x additional fill on the 8” lid

2 jacketed vessel :

14” manway lid

2” tri clamp center

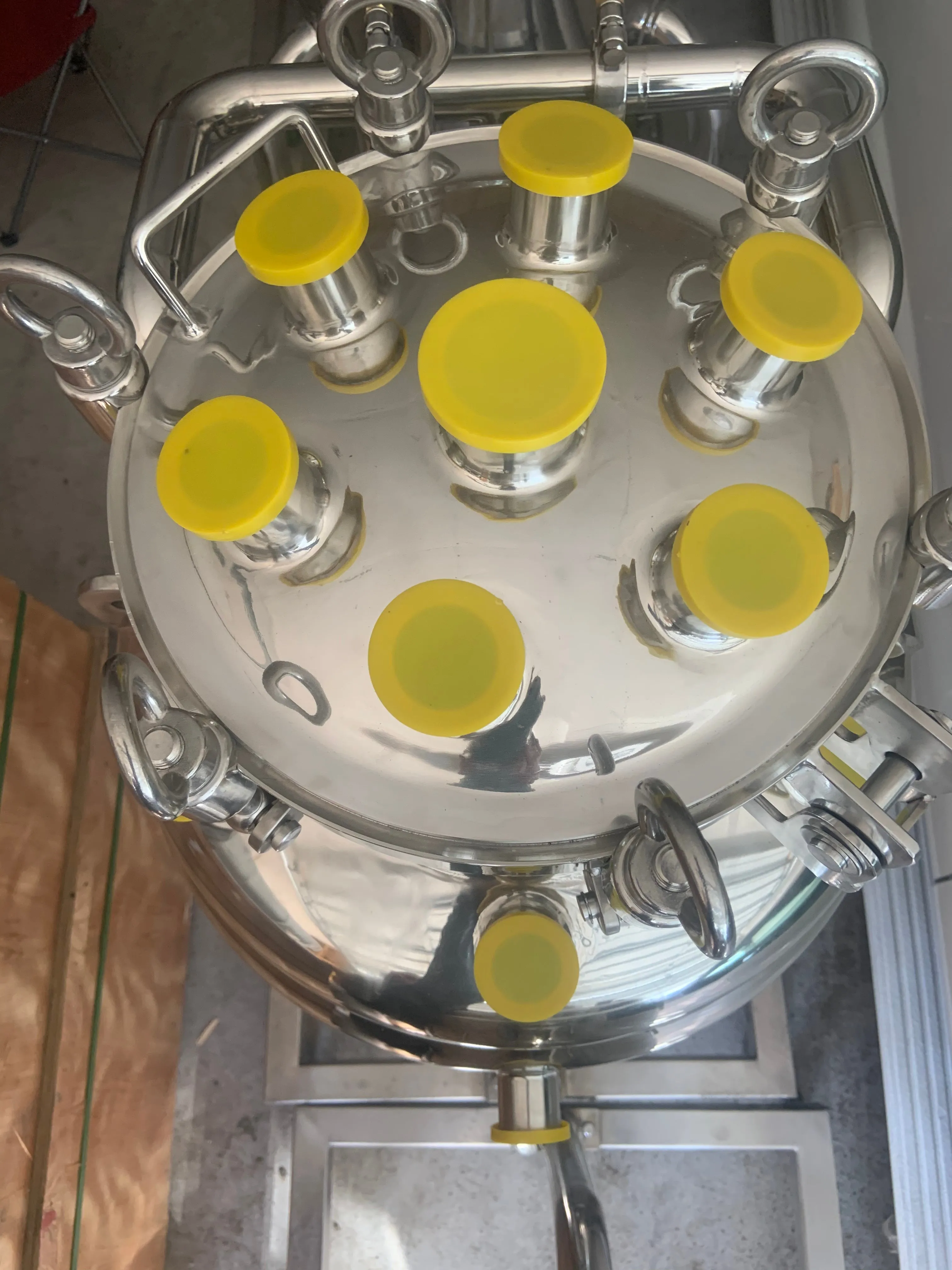

6x 1.5” tri clamp on lid

6x additional 1.5” tri clamp on top below manway

6” tri clamp bottom with 1.5” drain

1.5” jacket inlet and outlet

Dimensions :

Approx. Tank Dimensions: ~36” L x 36” W x 65”

400lbs

ASME stamped

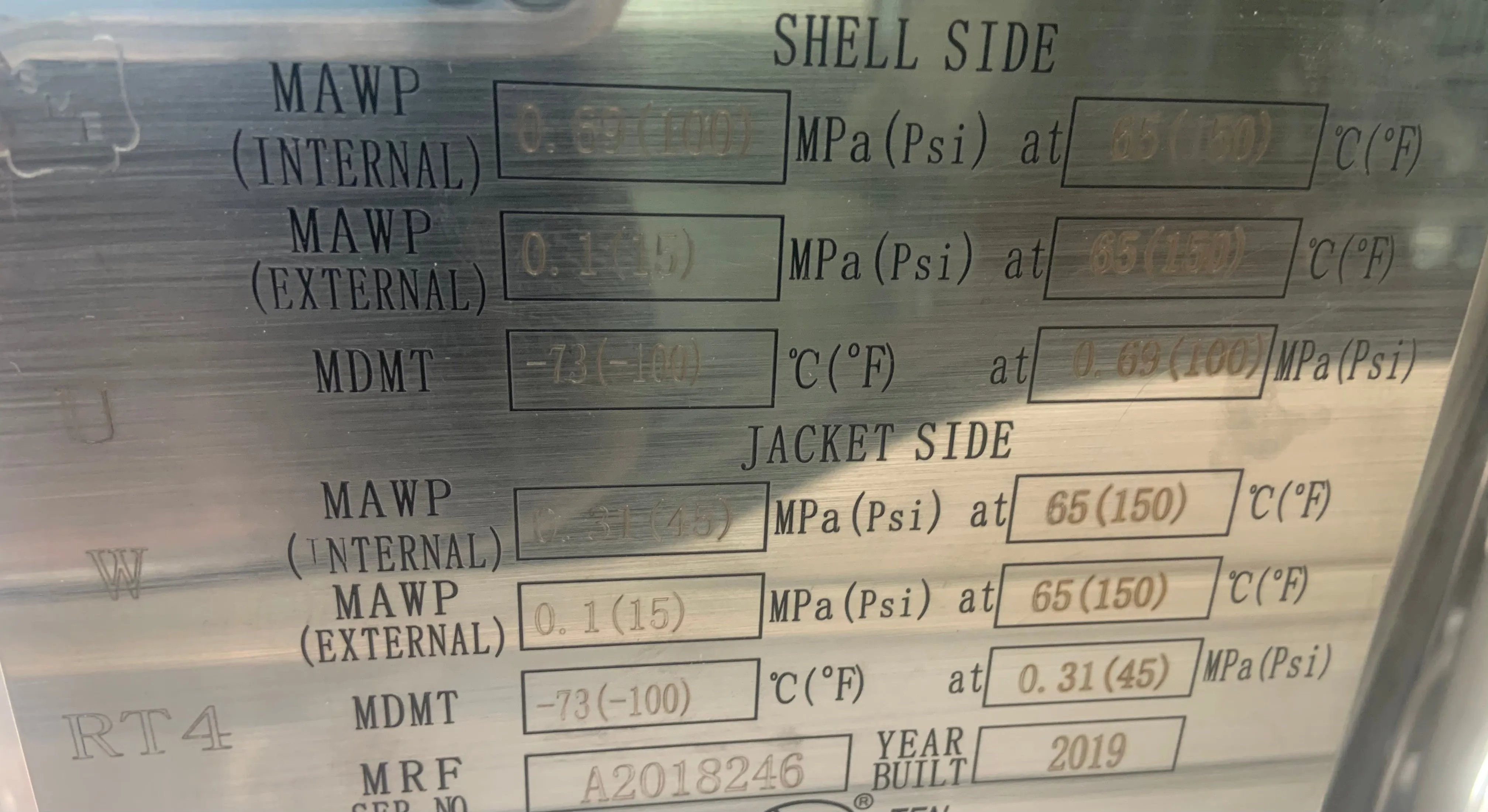

Shell side:

MAWP internal 100psi at 150F

MAWP external 15 psi at 150F

MDMT -100F at 100Psi

Jacket side:

MAWP internal 45 psi at 150F

MAWP external 15 psi at 150F

MDMT -100F at 45psi

304 stainless steel

Please call for a freight quote, we have these in stock in Forestville Ca 95436 for expedited delivery across the USA.

weight is approx 1000lbs dry so freight will run $750-$900 in the cont usa

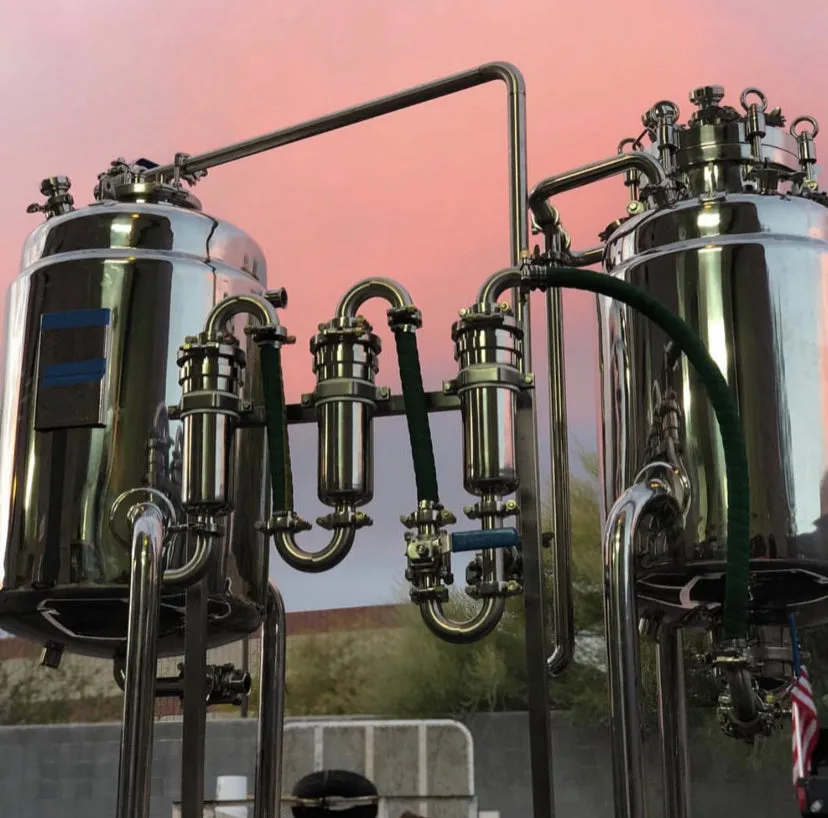

we have set these up with pumps for ethanol washing of hemp, 3 stage filtration racks, decarb, crystallization among other uses( dmt, pentane, hexane, propane, butane)

Decarboxylation Reactors

USA shipping from Forestville CA
